CHAPTER-1
1.0 INTRODUCTION

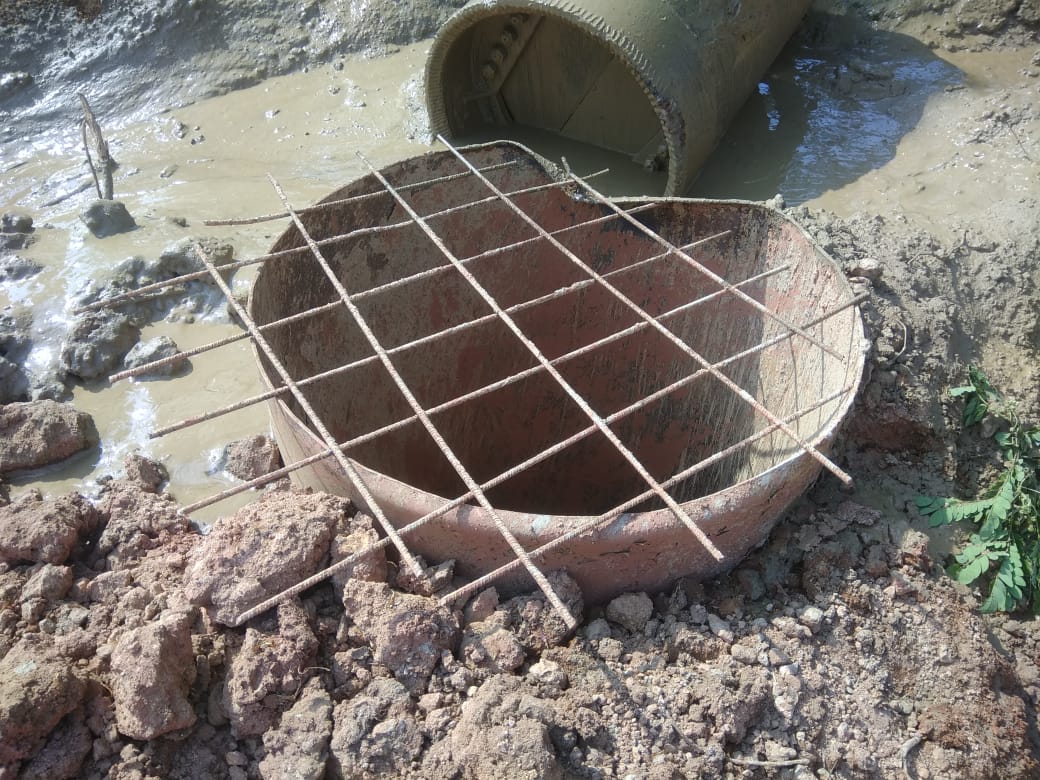

Rain is the ultimate source of fresh water. With the ground area around houses and buildings being cemented, particularly in cities and towns, rainwater, which runs off from terraces and roofs, was draining into low-lying areas and not percolating into the soil. Thereby, precious rainwater is squandered, as it is drained into the sea eventually. Rain water harvesting is a system by which, the rainwater that collects on the roofs and the area around the buildings is directed into open wells through a filter tank or into a percolation chamber, built specifically for this purpose. Rainwater is collected directly or recharged into the ground to improve ground water storage. Water that is not extracted from ground during rainy days is the water saved.
1.1 NEED FOR RAIN-WATER HARVESTING
Major parts of our country have been facing continuous failure of monsoon and consequent deficit of rainfall over the last few years. Also, due to ever increasing population of India, the use of ground water has increased drastically leading to constant depletion of ground water level causing the wells and tube- wells to dry up. In some places, excessive heat waves during summer create a situation similar to drought. It is imperative to take adequate measures to meet the drinking water needs of the people in the country besides irrigation and domestic needs. Out of 8760 hours in a year, most of the rain in India falls in just 100 hours.
1.2 LOCATION DETAILS: Coordinates: 12.91010N 0030E. Altitude: 147m (482ft)
Location: Moodabidre, Mangalore-Solapure National Highway.
Average rain fall: 178.35inches per annum or 4530mm per annum. Temperature: 26.580C.
CHAPTER-2
2.0 VARIOUS METHODS EMPLOYED
Rainwater can be harvested in a variety of ways:
- Directly from roof tops and stored in
- Monsoon run off and water in swollen streams during the Monsoon and storing it in underground
- Water from flooded rivers can be stored in small
There are basically two models associated with Rainwater harvesting:
2.1 URBUN MODEL: This method mainly insists on directly harvesting water from roof tops. The schematic diagram is as follows:
In domestic Rooftop Rainwater Harvesting Systems rainwater from the house roof is collected in a storage vessel or tank for use during the periods of scarcity. Usually these systems are designed to support the drinking and cooking needs of the family at the doorstep. Such a system usually comprises a roof, a storage tank and guttering to transport the water from the roof to the storage tank. In addition, a first flush system to divert the dirty water which contains roof debris collected on the roof during non-rainy periods and a filter unit to remove debris and contaminants before water enters the storage tank are also provided.
- Roof catchment
- Gutters
- Down pipe and first flush pipe
- Filter unit
- Storage tank
- Collection pit
Roof Catchment: The roof of the house is used as the catchment for collecting the rainwater. Roofs made of corrugated iron sheet, asbestos sheet, tiles or concrete can be utilized as such for harvesting the rainwater. But thatched roofs are not suitable as it gives some colour to water and also the water carries pieces of roof material (such as palm leaves).
Gutters: Gutters are channels fixed to the edges of roof all around to collect and transport the rainwater from the roof to the storage tank. Gutters can be prepared in semi-circular and rectangular shapes as shown in figures. Locally available material such as plain galvanized iron sheet can be easily folded to required shapes to prepare semi-circular and rectangular gutters. Semi-circular gutters of PVC material can be readily prepared by cutting the PVC pipes into two equal semi-circular channels. Bamboo poles can also be used.
Downpipe: Down pipe is the pipe, which carries the rainwater from the gutters to the storage tank. Down pipe is joined with the gutters at one end, and the other end is connected to the filter unit of the storage tank as shown in figure below. PVC or GI pipes of diameter 50 mm to 75 mm (2 inch to 3 inch) are commonly used for down- pipe.
First Flush Pipe: Debris, dirt and dust collect on the roofs during non-rainy periods. When the first rains arrive, this unwanted material will be washed into the storage tank. This causes contamination of water collected in the storage tank thereby rendering it unfit for drinking and cooking purposes. Therefore, a first flush system is incorporated to dispose off the water from ‘first rain’ so that it does not enter the tank. There are two such simple systems. One is based on a simple manually operated arrangement, whereby, the down pipe is moved away from the tank inlet and replaced again once the first flush water has been disposed. In another simple and semi-automatic system, a separate vertical pipe is fixed to the down pipe with a valve provided below the “T” junction. After the first rain is washed out through first flush pipe, the valve is closed to allow the water to enter the down pipe and reach the storage tank.
Filter Unit: The filter unit is a container or chamber filled with filter media such as coarse sand, charcoal, coconut fibre, pebbles and gravels to remove the debris and dirt from water that enters the tank. The container is provided with a perforated bottom to allow the passage of water. The filter unit is placed over the storage tank. Commonly
used filters are of two types. One is a Ferro-cement filter unit, which is comparatively heavy and the other is made of either aluminium or plastic bucket. The latter is readily available in market and has the advantage of ease in removing, cleaning and replacing. Another simple way of filtering the debris and dust particles that came from the roof along with rainwater is to use a fine cloth as filter media. The cloth, in 2 or 3 layers, can be tied to the top of a bucket or vessel with perforations at the bottom.
Storage Tank: Storage tank is used to store the water that is collected from the Rooftops. Common vessels used for small scale water storage are plastic bowls, buckets, jerry cans, clay or ceramic jars, cement jars, old oil drums etc. For storing larger quantities of water the system will usually require a bigger tank with sufficient strength and durability.
There are unlimited number of options for the construction of these tanks with respect to the shape (cylindrical, rectangular and square), the size (Capacity from 1,000 lt. to 15,000 lt. or even higher) and the material of construction (brickwork, stonework, cement bricks, Ferrocement, plain cement concrete and reinforced cement concrete). For domestic water needs, taking the economy and durability of tanks into consideration, Ferrocement tanks of cylindrical shape in capacities ranging between 4,000 lt. and 15,000 lt. are most suitable. Plain cement concrete and reinforced cement concrete are used for tank capacities usually more than 50,000 lt. Brick, stone, cement brick may be used for capacities ranging between 15,000 lt. to 50,000 lt.
The Ferrocement tanks are usually constructed above ground level because of the following advantages:
- Ease in finding structural problems/leaks,
- Easy to maintain and clean and
- Easy to draw
It is difficult to detect the leaks and take corrective measures in case of underground tanks. Water from underground tanks cannot be drawn by gravity. Some kind of manual or power lifting devices need to be used for drawing the water. Further, in coastal areas, underground tanks are prone to water contamination due to fluctuation in groundwater table and leakage of stored water.
The storage tank is provided with a cover on the top to avoid the contamination of water from external sources. The cover will be in dome shape having a raise of about 20-30 cm. in the middle. The dome is provided with two circular openings, one for manhole and another for accommodating the filter. A lid covers the manhole avoiding exposure of stored water to the outside environment. The storage tank is provided with pipe fixtures at appropriate places to draw the water, to clean the tank and to dispose of the excess water. They are named tap or outlet, drainpipe and over flow pipe respectively. PVC or GI pipes of diameter 20 mm to 25 mm (¾ inch to 1 inch) are generally used for this purpose.

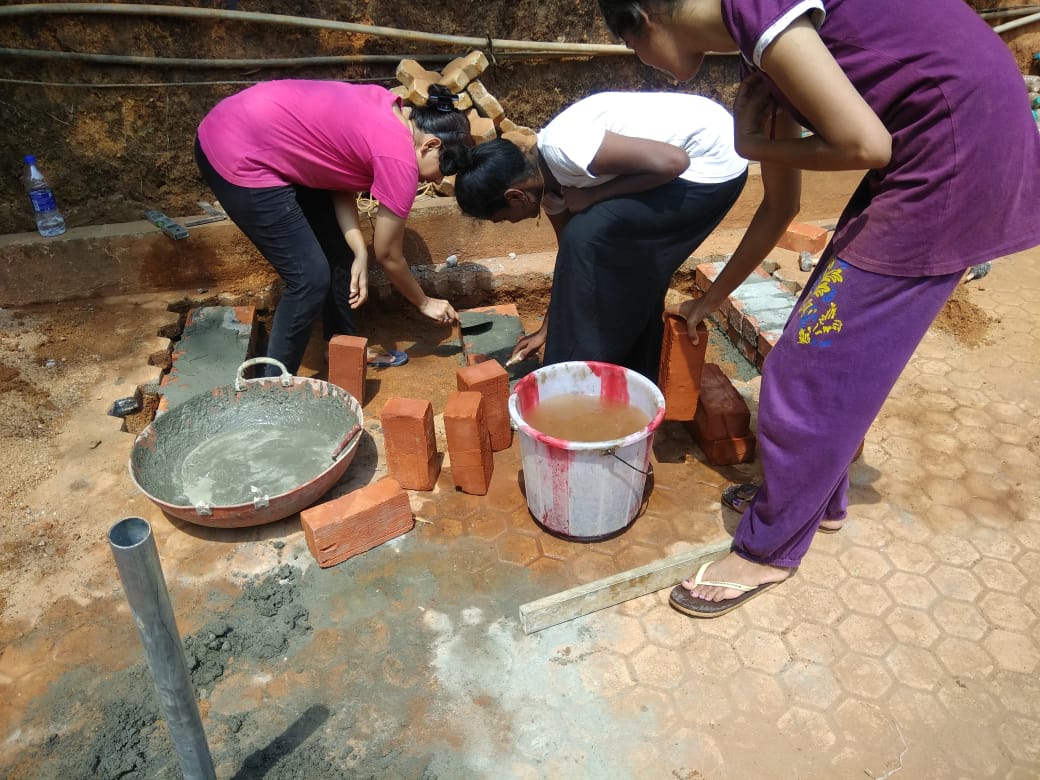

Collection Pit: A small pit is dug in the ground, beneath the tap of the storage tank and constructed in brick masonry to make a chamber, so that a vessel could be conveniently placed beneath the tap for collecting water from the storage tank. A small hole is left at the bottom of the chamber, to allow the excess water to drain-out without stagnation. Size of collection pit shall be 60 cm x 60 cm x 60 cm.
2.2 RURAL MODEL: It is quite similar to urban model but has few more methods used to store water either for agricultural purpose or for domestic use. In rural areas, houses have usually inclined roof made up of asbestos sheets, bricks or cemented sheets. Thus water from the roof comes to the edges easily and is collected using channels fitted and is brought to storage tank through PVC pipes. The storage tank is made up of Ferrocement. Cloth is the material used as filter to clean out the water from the roof. This type of tank stores enough water for drinking needs of a five member family for a
2.3 EXPECTED BENEFITS:
- Prevents water wastage by arresting run
- Prevents soil erosion and mitigates
- Sustains and safeguards existing water table through
- Increases water availability and improves water
- Arrests sea-water intrusion and prevents salination of ground
2.4 COLLECTION OF RAINWATER: Calculation of mean annual rainfall:
| Year | 2005 | 2006 | 2007 | 2008 | 2009 | 2010 | 2011 | 2012 | 2013 | 2014 | 2015 |
| Avg rainfall (mm) | 3868 | 4710 | 4262.3 | 3628 | 4383.5 | 4607.2 | 5250.8 | 3797.3 | 5471.9 | 3959.4 | 1018.8 |
Average rain fall is determined by using Athematic average method,
Pavg=∑P/N
Where, P-Precipitation or Rain fall per annum N-Number of years
Pavg= (P1+P2+…+Pn)/N
= (3868+4710+4262.3+3628+4383.5+4067.2+5250.8+3797.3+5471.9+3959.4+1018.8)/10
= 4393.86mm
Catchment area:
| Building | Area (m2) |
| Kumaradhara Block-A Hostel | 1130 |
| Kumaradhara Block-B Hostel | 450 |
| Kumaradhara Block-C and D Hostel | 2280 |
| Civil and Mech Block AIET | 1750 |
| Main Block AIET | 2220 |
| MBA Block AIET | 560 |
| Total Area | 8390 |
Assuming Run-off coefficient = 0.12 (for Forest area)
Mean Rain water Quantity = Mean annual rain fall X Catchment area X Runoff coefficient
= 4.39386 X 8390 X 0.12
= 4423.74 m3
